DPV Speed Controller for SUEX V3

Description

This electronic speed controller was designed specifically for modification of Suex underwater scooters, with it your scooter will gain the functionality of modern units. You will install it yourself with basic tools, without interfering with the body of the scooter, making additional holes or requiring additional gaskets.

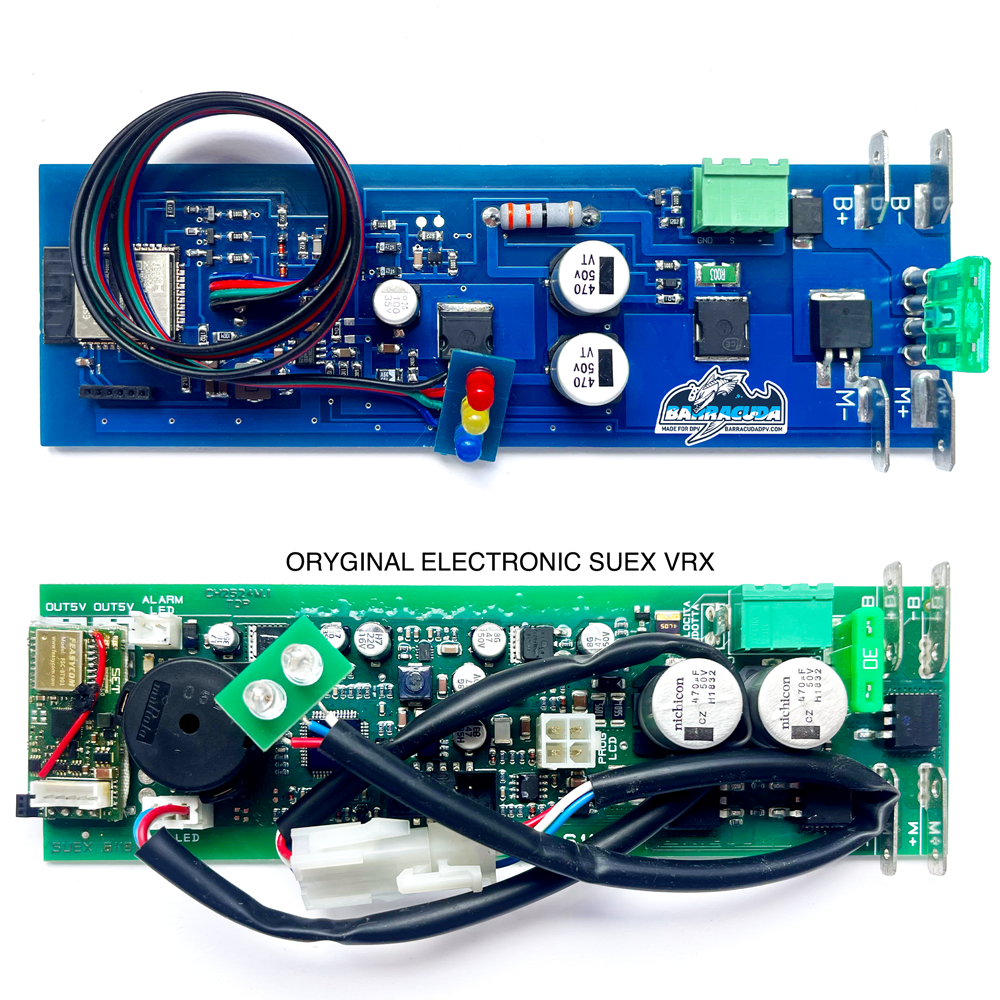

Installation involves replacing the original controller, all connectors are located in accordance with the original.

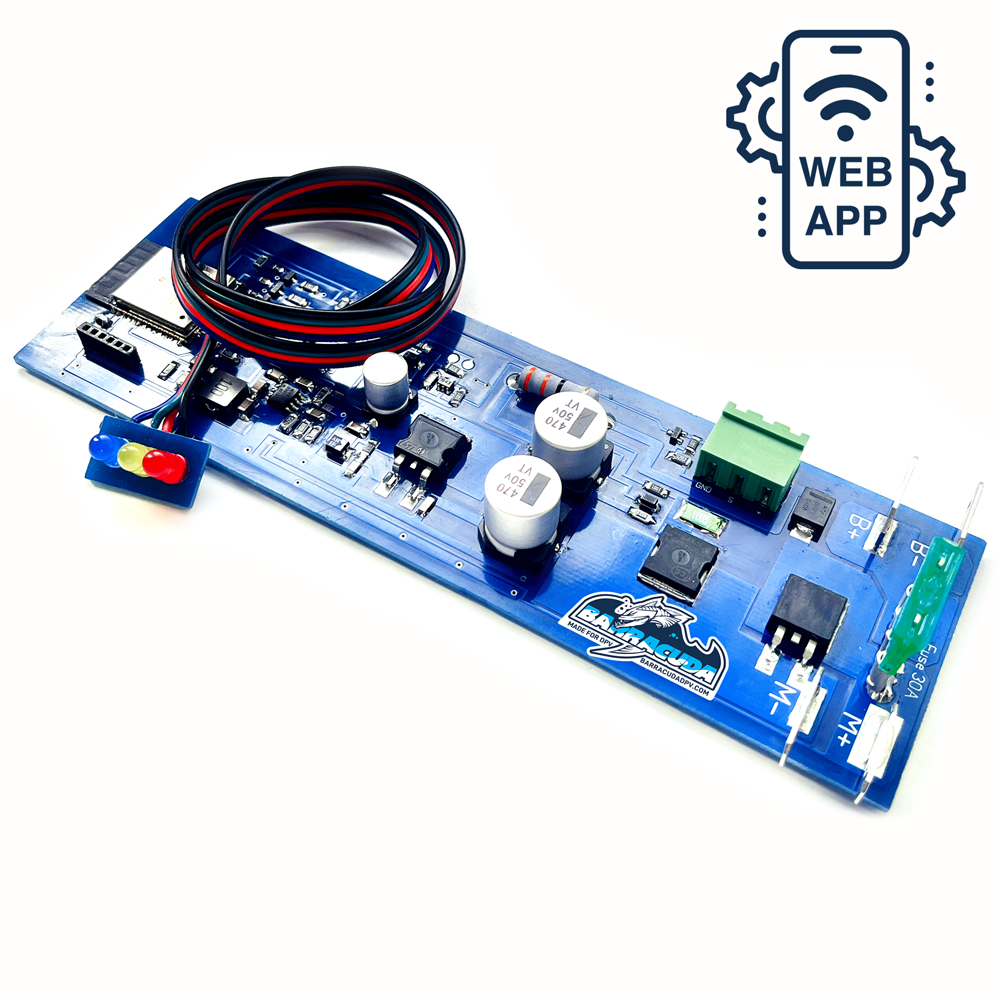

Default settings of the controller offer a soft start function, defined 5 gears (speeds), the start is from 3rd gear, and after clicking the trigger three times you will reach the maximum speed. Default settings can be modified wirelessly over Wi-Fi using the Web App after through a web browser on a phone, tablet or computer.

Settings/functions you can modify/activate:

• Starting gear
• Speed and number of gears (max 8)
• Speed ramp-up rate
• Trigger response time
• Double click for start
• Start at maximum speed
• Cruise control
• Half battery warning (yellow LED light on continuously)
• Low battery warning (red LED light on continuously)
• Information about the current voltage and battery level.

List of models:

• Suex XJ VRX/VRT/VR
• Suex 7 Seven
• Suex Xjoy 7
• Suex Xjoy 14
• Halcyon HDV R14
• Halcyon HDV T16
• and others… Ask a question if you are not sure if it fits your DPV

Check out the installation of the controller.

Check out how to modify your own settings.

Operating parameters:

• Operating voltage 18 – 40V
• Continuous operating current – 30A
• Overcurrent protection – 40A
• Standby current consumption – 50mA

The DPV Speed Controller is equipped with a Lower Voltage Cut-off function – cutting off the power supply when the battery voltage drops below 18V – especially recommended for NiMH/NiCd batteries, but this also protects lead batteries from deep discharge.
